BL2 Enclosure

pics/enclosures/BL2/2012-11-02%2012.35.31.jpg

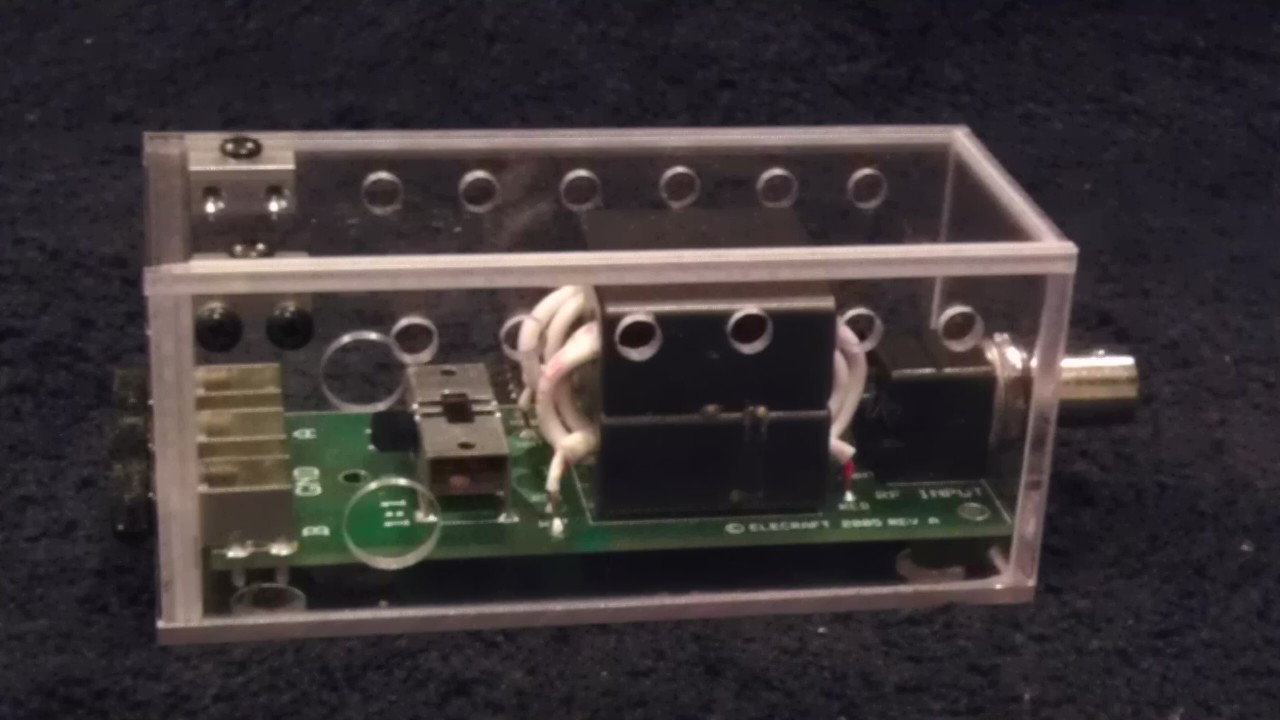

The BL2 enclosure was designed to house the BL2 board as built per the Elecraft instructions, with the rubber feet mounted on the bottom of the PCB. The BL2 board is secured to the bottom of the enclosure via the thumbscrews at the rear of the board as well to the top of the enclosure via the BNC connector with a supplied hex nut and lockwasher.


1/8" vent holes are drilled in the sides to allow horizontal ventilation. Again, for field use, it should keep most things out. There are also 4 plastic feet on the bottom that grip solid surfaces very well.

pics/enclosures/BL2/2012-11-02%2012.31.15.jpg

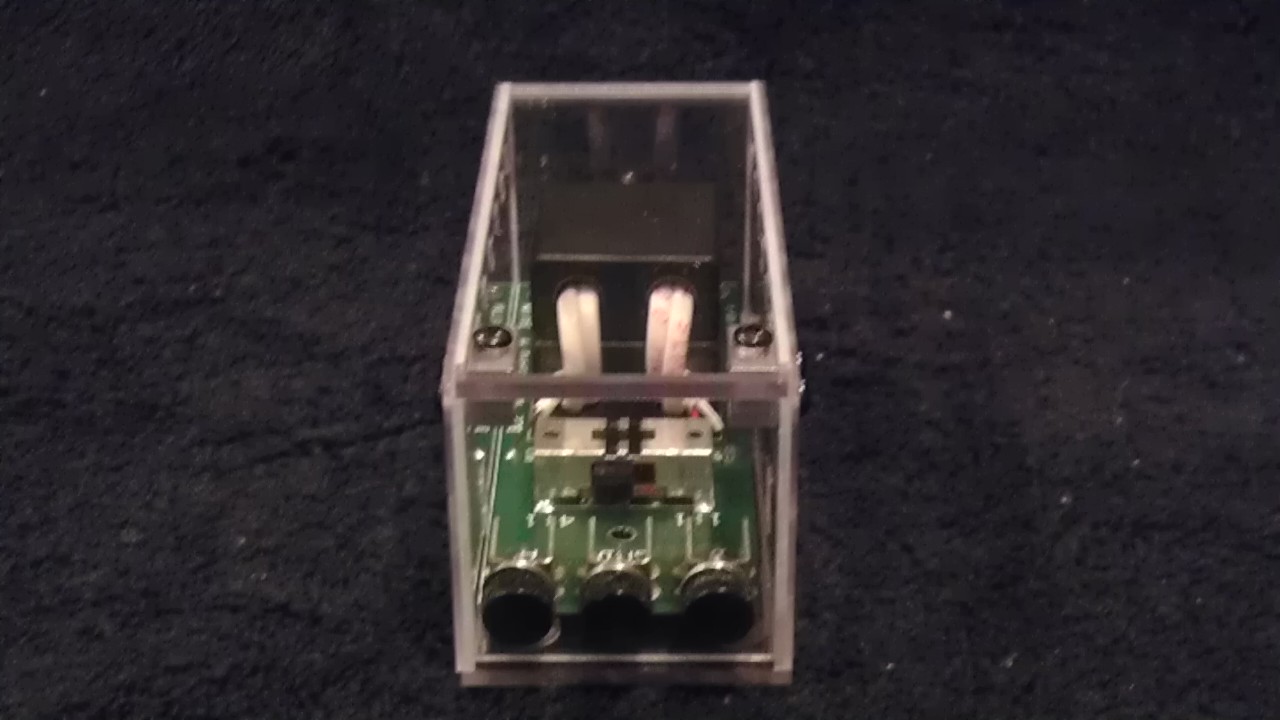

The board is secured to the enclosure via the thumbscrews on the back as well as a hex nut on the BNC connector on the front.

pics/enclosures/BL2/IMG_0564.JPG

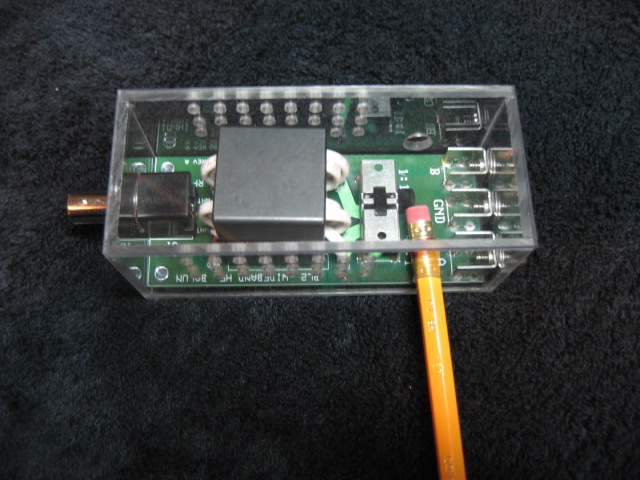

Two holes are drilled in the sides to accomodate using something like a pencil to select the 1:1 or 4:1 switch setting.

installation instructions

Remove the thumbscrews and washers from the rear of the BL2 board.

Simply slide the BL2 board into the bottom of the enclosure and secure to the rear of the enclosure with the thumbscrews and washers.

Place the BNC connector through the mounting hole on the top/front panel and secure with the BNC connector with the provided hex nut and lock washer.

Availability

BL2 Balun Enclosure
$17.95
For orders of 5 or more enclosures, custom orders or inability to use PayPal for domestic orders, please visit the order page for more info.
